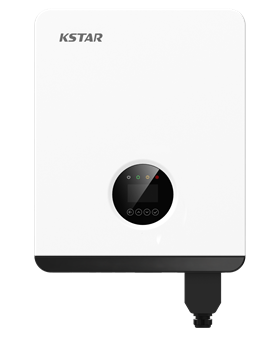

On-grid / 8-12 kW

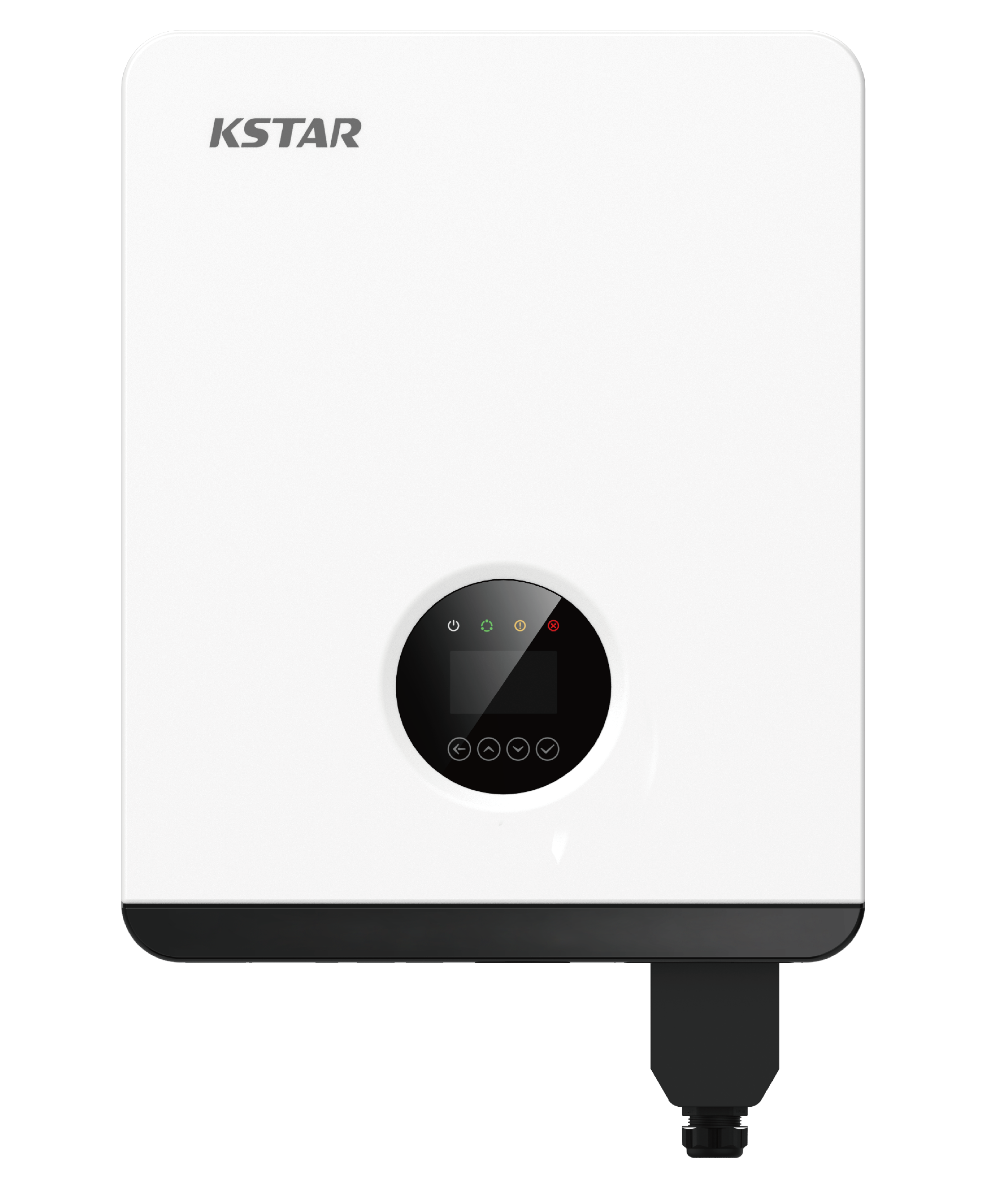

BlueGlow G8~12K

G Series is a single-phase on-grid inverter platform ranging from 8 kW to 12 kW, designed for high-power residential rooftop systems. With up to 98.1% peak efficiency, dual MPPT, and 20 A per MPPT input capability, it delivers class-leading power density and flexibility in a compact IP66 enclosure.

sales@kstar.com

Key Features

Industry-Leading Single-Phase Capacity

12 kW output, setting the benchmark for single-phase on-grid inverters and meeting the growing demand for higher-power residential systems.

Ultra-High DC Configuration

Supports up to 18 kWp DC input power with a DC/AC ratio of up to 1.5, enabling larger oversizing for greater energy harvest.

Full Compatibility with High-Current Modules

20 A input current and 30 A short-circuit current per MPPT, fully compatible with mainstream 182/210 high-power PV modules.

Comprehensive Safety Protection

DC Type III (Type II optional) / AC Type III surge protection, string fault detection, insulation detection, AC short-circuit protection, and optional AFCI arc-fault protection.

Download

Datasheet

Certifications

User Manual

No Files

User Manual
- 4257-0612_G7K-12K User Manual KSTAR (English)
