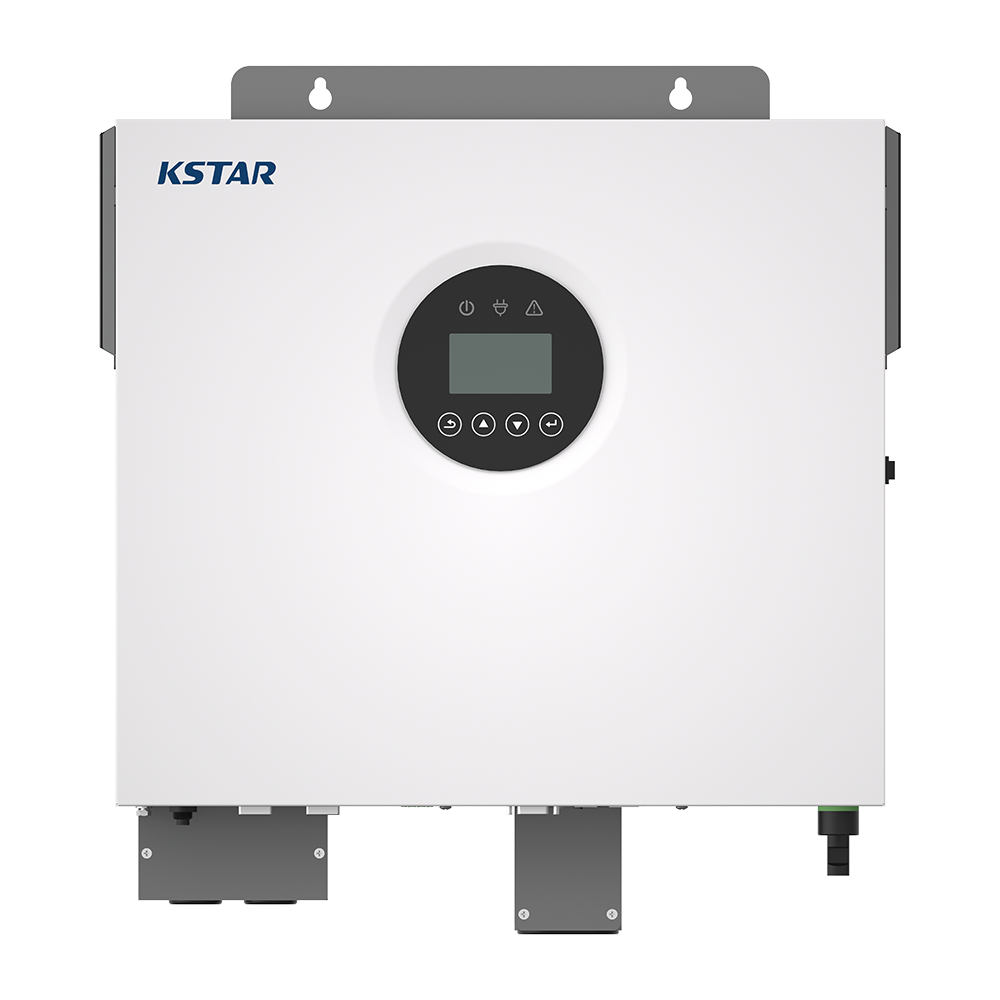

Knight Series Off-Grid Inverter (3.6 / 6 kW)

Off-Grid Knight Series 3.6 / 6 kW

The Knight Series off-grid inverter provides dependable power for MEA homes in weak or off-grid environments. It allows flexible energy prioritization between PV, battery, and grid, and supports both lead-acid and LFP batteries.

With up to 120 A charging current and diesel generator compatibility, it ensures continuous power in challenging conditions. Scalable up to six units, it grows with demand. App and web monitoring enable simple, real-time control.

sales@kstar.com

Key Features

Safety

• 6kV lightning protection
• DC-DC high-frequency isolating converter (Battery)
• Waterproof PV terminal

Green

• Up to 93.5% efficiency
• Output power factor is 1.0
• Intelligent cooling fan control
• Low THDv

User-friendly

• Dot-matrix screen and physical button
• Built-in WiFi module (Optional)
• APP support (Optional)
• Built-in PV terminal for easy installation

Reliable

• Wide input voltage of AC and PV
• Pure sine wave output
• Compatible with generator
• Built-in intelligent temperature sensors
• Dust cleaning alarms and dust-proof kit

Fast Charging

• PV and AC charging current is up to 120 A
• Intelligent charging (Multiple charging modes)

Applications

• Support home appliances/office equipment/ lighting equipment, etc.
• Support lead-acid and lithium-ion batteries
• Max. 6 units in parallel
• RS-232/USB/Dry contact
