Three Phase / Floor Mounted / 240 kW / 480 kW

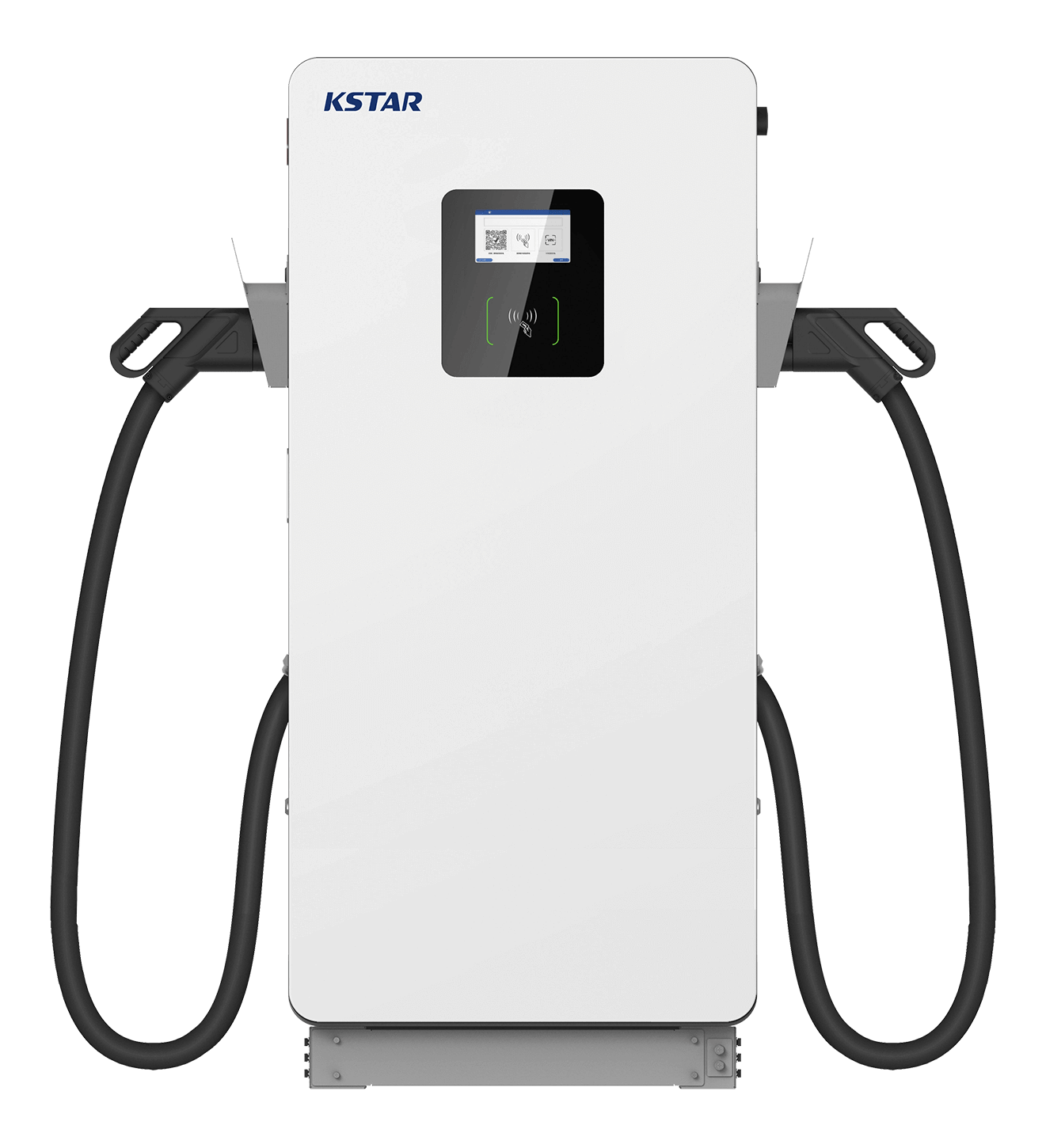

GreenFlow DC Charger

The GreenFlow DC Charger delivers faster charging with less waiting, thanks to ultra-high output power up to 480 kW and dual CCS2 connectors that allow two electric vehicles to charge simultaneously at full speed. It is reliable and safe with IP54 weather protection, IK10 impact resistance, and comprehensive electrical protections for harsh operating conditions. The built-in EMS platform enables smart energy management that prevents overload and balances power, reducing energy costs and grid stress.

A 15.6-inch display, RFID card, QR code, and POS terminal make payment easy and contactless. With OCPP 1.6 J, 4G, Wi-Fi, and Ethernet, the charger stays always connected for remote monitoring and integration with mainstream backend platforms. Built to last, it operates from -30°C to +75°C and achieves up to 96% efficiency for lower operating costs.

GreenFlow DC Charger
Key Features
Integrated PV-ESS-Charging Solution
Independent EMS platform developed by KSTAR could create an integrated system solution involving all KSTAR devices
Dual-connector HPC
Dual-connector supports simultaneous charging with an ultra-high output power
Dynamic Load Management
Dynamic load management and balancing are supported since the overload can be effectively avoided via EMS platform
3rd-party Charging Management System
Integrate with mainstream backend platform to provide various functions with easy operation
Three Phase / Floor Mounted / 240 kW / 480 kW
Backgound image for Three Phase / Floor Mounted / 240 kW / 480 kW

Download

Datasheet
Certifications
User Manual
